10 Best Graphics Cards (GPUs) for CAD in 2025 – Power Up Your Designs

When choosing the best graphics cards for CAD in 2025, look for models that combine high memory, efficient cooling, and robust performance. Options like the XFX Speedster SWFT210 and Intel Arc B580 Titan OC are great for budget-conscious users. For high-performance needs, consider the XFX Mercury AMD Radeon RX 9070XT or MSI GeForce RTX 4060. These cards excel in rendering and design precision, helping you power up your projects effortlessly. You’ll find even more great options ahead.

Key Takeawys

• Look for graphics cards with at least 8GB of memory for efficient CAD performance and multitasking capabilities.
• Prioritize models with advanced cooling systems, like triple fans, to prevent thermal throttling during intensive design tasks.
• Consider GPUs with high boost clock speeds, such as the XFX Mercury RX 9070XT, for faster rendering and smoother workflows.
• Choose cards that support high resolutions, ideally up to 8K, to enhance detail and clarity in CAD projects.
• Evaluate user reviews and expert recommendations to identify reliable and high-performing graphics cards tailored for CAD applications.

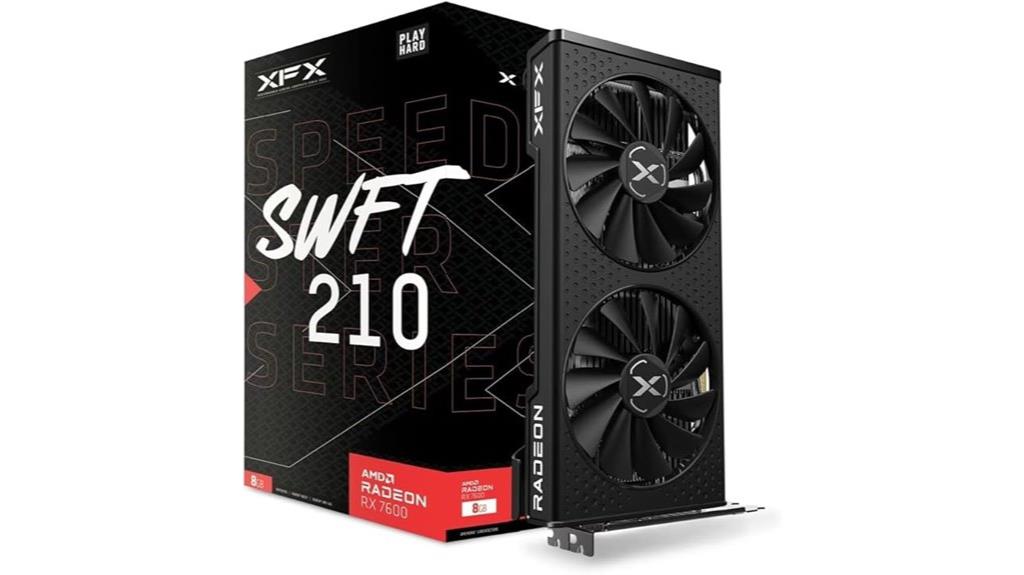

XFX Speedster SWFT210 Radeon RX 7600 Graphics Card

The XFX Speedster SWFT210 Radeon RX 7600 Graphics Card, equipped with 8GB of GDDR6 memory and a boost clock of up to 2655 MHz, stands out as an excellent choice for budget-conscious CAD users seeking reliable performance in design applications. With a maximum screen resolution of 3840×2160 and an 18 GHz memory speed, it provides clear and detailed visuals. The XFX SWFT dual fan cooling solution guarantees effective thermal management, though some users report it can become hot and noisy under load. Overall, its compact design and solid performance make it a commendable option for low to midrange design tasks.

Best For: Budget-conscious CAD users seeking reliable performance in design applications.

Pros:

• Compact design that fits well in various setups.
• Effective dual fan cooling solution for thermal management.
• Provides clear and detailed visuals at high resolutions.

Cons:

• Can become hot and noisy under heavy load.
• Some users report issues with blurry upscaling.
• Perceived as overpriced by certain customers.

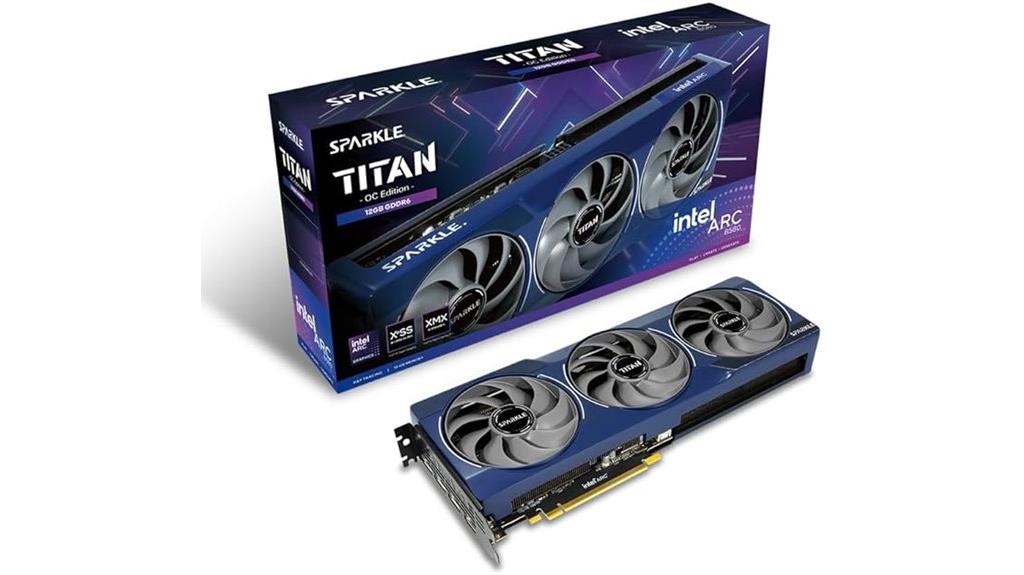

Intel Arc B580 Titan OC Graphics Card (SB580T-12GOC)

Equipped with 12GB of GDDR6 memory, the Intel Arc B580 Titan OC Graphics Card (SB580T-12GOC) stands out as an excellent choice for budget-conscious professionals engaging in CAD applications in 2025. With a maximum resolution of 3840×2160 and a boost clock of 2760MHz, it offers impressive performance for its price point, typically retailing around $250. Its TORN Cooling 2.0 system and axial fan guarantee efficient thermal management, while the metal backplate adds durability. Rated 4.3 out of 5 stars, it competes effectively with Nvidia’s 4060 and AMD’s 7600, making it a solid entry-level option for CAD design.

Best For: Budget-conscious professionals engaging in CAD applications or entry-level gaming looking for solid performance at an affordable price.

Pros:

• Efficient Cooling: TORN Cooling 2.0 system and axial fan ensure optimal thermal management.
• Strong Performance: Competes effectively against Nvidia’s 4060 and AMD’s 7600, providing impressive graphics for its price.
• Durable Design: Features a metal backplate for enhanced durability and a blue breathing light for aesthetic appeal.

Cons:

• Price Gouging Concerns: Some users reported issues with prices exceeding the MSRP of $250.
• Benchmark Variability: Certain benchmarks showed poor performance in specific tests, leading to mixed reviews.
• Limited Warranty Information: Warranty details are not explicitly provided, which may raise concerns for buyers.

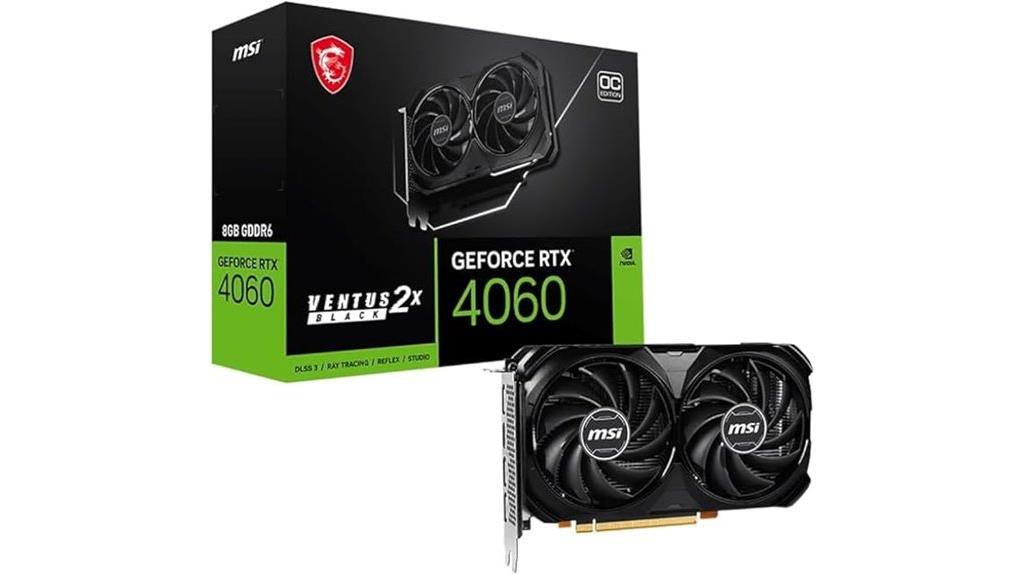

MSI GeForce RTX 4060 Gaming Graphics Card (8GB GDDR6X)

Designed for professionals seeking high-performance graphics solutions, the MSI GeForce RTX 4060 Gaming Graphics Card boasts 8GB of GDDR6X memory, making it a formidable choice for CAD applications in 2025. Equipped with NVIDIA’s Ada Lovelace architecture, it provides rapid ray tracing and AI-accelerated performance through DLSS 3. The dual fan design guarantees efficient cooling, while the TORX FAN 4.0 technology maintains a quiet operation. With dimensions of 7.83 x 4.72 inches and a weight of 1.2 pounds, it is compact yet powerful. Customers rate it highly for performance and ease of installation, solidifying its place in the market.

Best For: Professionals and gamers seeking high-performance graphics solutions for demanding applications and gaming in 2025.

Pros:

• High-performance: Equipped with 8GB GDDR6X and NVIDIA Ada Lovelace architecture for efficient ray tracing and AI acceleration.
• Efficient cooling: Dual fan design and TORX FAN 4.0 technology ensure quiet operation and effective thermal management.
• Compact design: Lightweight and compact dimensions make it easy to install in various setups.

Cons:

• Limited availability: As a relatively new product, it may have limited stock in some regions.
• Price point: Higher price compared to older models may not appeal to budget-conscious buyers.
• Mixed user experiences: While many reviews are positive, some users report issues or specific needs not being met.

Acer Nitro Intel Arc B570 Overclocking Graphics Card

Acer’s Nitro Intel Arc B570 Overclocking Graphics Card stands out for its robust 10GB GDDR6 memory and impressive 2.69 GHz graphics clock, making it an excellent choice for professionals engaged in CAD applications. Featuring 18 Xe2 cores, it supports resolutions up to 7680 x 4320 (8K), ensuring detailed visuals. The dual fan Frostblade cooling system maintains ideal temperatures during heavy workloads, promoting stability. Additionally, the card excels in high FPS gaming at 1440p and 8K, while its Creator Toolkit facilitates efficient content creation. Overall, the B570 combines performance and versatility, catering to both design and entertainment needs.

Best For: The Acer Nitro Intel Arc B570 Overclocking Graphics Card is best for gamers and content creators seeking high-performance graphics solutions for 1440p and 8K applications.

Pros:

• High performance with 10GB GDDR6 memory and 2.69 GHz clock speed for smooth gaming and professional applications.
• Advanced cooling system with Dual Fan Frostblade technology to maintain optimal temperatures during intense usage.
• Versatile capabilities for both high FPS gaming and efficient content creation, including support for AI tools.

Cons:

• Size and weight may be a concern for compact builds, measuring 13.66 x 7.24 x 2.83 inches and weighing 1.43 pounds.
• Best Sellers Rank of #722 may indicate competition from other high-performing graphics cards.
• Warranty limitations as it is subject to Amazon’s return policy and includes only a 30-day return window for new computers.

XFX Mercury AMD Radeon RX 9070XT OC Gaming Edition

The XFX Mercury AMD Radeon RX 9070XT OC Gaming Edition stands out as an exceptional choice for engineers and designers seeking high-performance graphics cards for CAD applications in 2025. Featuring a robust 16 GB GDDR6 memory and a boost clock of up to 3100 MHz, this card delivers impressive performance. Its innovative XFX MERC Triple Fan Cooling Solution guarantees efficient thermal management, keeping temperatures below 60°C. With a maximum resolution of 3840×2160, it excels in rendering detailed designs. Although priced around $359, user ratings reflect a satisfaction level of 4.5 out of 5, highlighting its value within the competitive graphics card market.

Best For: Engineers and designers seeking high-performance graphics cards for CAD applications in 2025.

Pros:

• High Performance: Boasts 16 GB GDDR6 memory and a boost clock of up to 3100 MHz, ideal for demanding applications.
• Efficient Cooling: XFX MERC Triple Fan Cooling Solution keeps temperatures below 60°C, ensuring stable operation.
• High Resolution Support: Capable of a maximum resolution of 3840×2160, perfect for rendering detailed designs.

Cons:

• Price Point: Retail price around $359 is considered high compared to competitors like RX 6800.
• Size Compatibility: Requires medium ATX tower cases and GPU support brackets due to its dimensions.
• Potential Coil Whine: Some users have reported experiencing coil whine under specific conditions.

MSI GeForce RTX 5090 Gaming Trio OC (32GB GDDR7)

With its impressive 32GB GDDR7 memory and robust performance capabilities, the MSI GeForce RTX 5090 Gaming Trio OC stands out as an excellent choice for CAD professionals and enthusiasts seeking high-resolution rendering and complex simulations. Featuring a boost clock of 2482MHz and utilizing a PCIe 5 interface, this graphics card delivers top-tier performance, exemplified by its ability to run Cyberpunk 2077 at ultra settings in 4K resolution at 183fps. Weighing 4.4 pounds and measuring 14.13 x 5.87 inches, it requires a minimum 1000 W power supply. Customer ratings average 4.6 out of 5 stars, reflecting positive feedback overall.

Best For: CAD professionals and gaming enthusiasts seeking high-performance graphics for complex rendering and simulations.

Pros:

• Exceptional Performance: Capable of running demanding games like Cyberpunk 2077 at ultra settings and 4K resolution at 183fps.
• Ample Memory: 32GB GDDR7 memory supports high-resolution workloads and complex simulations.
• Latest Technology: Utilizes PCIe 5 interface for enhanced data transfer speeds.

Cons:

• High Price: Initial price is steep at approximately $4,900, which may deter some buyers.
• Power Supply Requirement: Requires a minimum 1000 W power supply, limiting compatibility with some systems.
• Driver Updates Necessary: Needs the latest drivers for optimal performance, which may require regular maintenance.

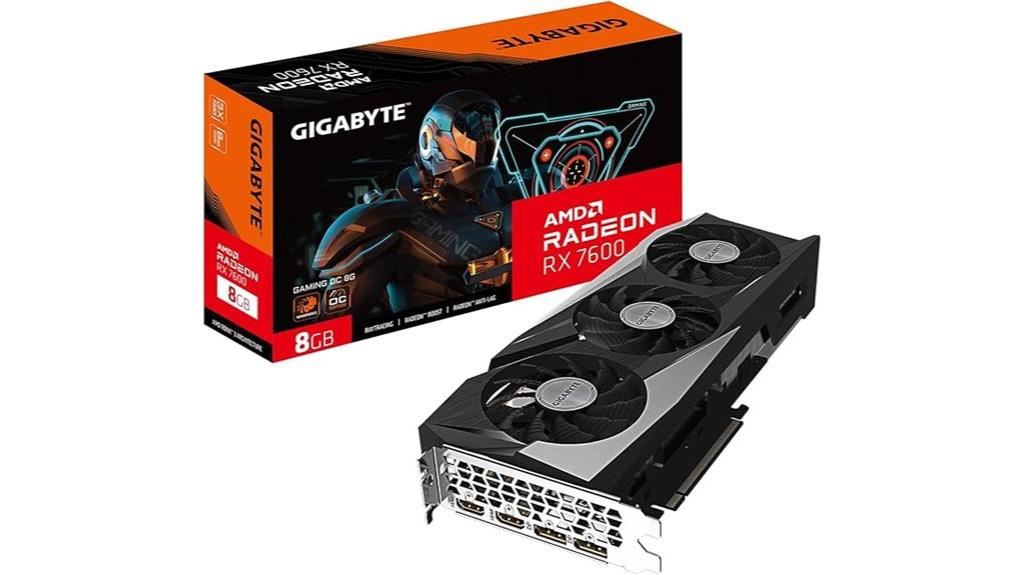

GIGABYTE Radeon RX 7600 Gaming OC 8G Graphics Card

Designed for budget-conscious gamers and CAD professionals alike, the GIGABYTE Radeon RX 7600 Gaming OC 8G Graphics Card delivers impressive performance at an accessible price point. Featuring 8GB of GDDR6 memory and a 128-bit memory interface, it operates on a PCI Express 4.0 platform. The card excels at 1080p gaming, achieving stable 120 FPS in demanding titles. Its WINDFORCE cooling system guarantees effective heat management, keeping temperatures below 70 degrees Celsius. With an average rating of 4.6 stars, users praise its performance and value, though some report minor driver issues. Priced under $300, it presents a compelling option for budget users.

Best For: Budget-conscious gamers looking for high-performance graphics without breaking the bank.

Pros:

• Excellent 1080p gaming performance with stable 120 FPS in modern titles.
• Effective WINDFORCE cooling system that keeps temperatures below 70 degrees Celsius.
• Competitive pricing under $300, offering great value for budget users.

Cons:

• Some users report driver issues and initial setup complications.
• The card can become noisy during heavy gaming sessions.
• Mixed experiences with customer service and product condition upon arrival.

GIGABYTE GeForce RTX 5070 Gaming OC 12G Graphics Card

Engineered for professionals requiring high performance in CAD applications, the GIGABYTE GeForce RTX 5070 Gaming OC 12G Graphics Card stands out with its impressive 12GB of GDDR7 memory and advanced NVIDIA Blackwell architecture. This graphics card features enhanced RT and Tensor Cores for superior visuals and AI processing, achieving high frame rates of 120-140 FPS in demanding games. Its WINDFORCE cooling system guarantees ideal temperature management, maintaining temperatures below 60°C. Compatible with PCIe 5.0 and requiring a 750W power supply, this large card offers a maximum resolution of 7680×4320 pixels, making it a strong contender for CAD users.

Best For: Professionals and gamers seeking high performance in demanding applications and games with advanced graphics requirements.

Pros:

• High Performance: Achieves 120-140 FPS in games like Cyberpunk with ray tracing overdrive.
• Efficient Cooling: WINDFORCE cooling system keeps temperatures below 60°C during intense gaming.
• Large Memory Capacity: 12GB GDDR7 memory allows for smooth performance in CAD applications and gaming.

Cons:

• Size Consideration: Requires ample space in the computer case due to its large dimensions.
• Power Supply Requirement: Needs a minimum of 750W power supply, which may necessitate upgrades for some users.
• PCI Slot Compatibility: Requires 2 PCI slots, which may limit compatibility with certain motherboards.

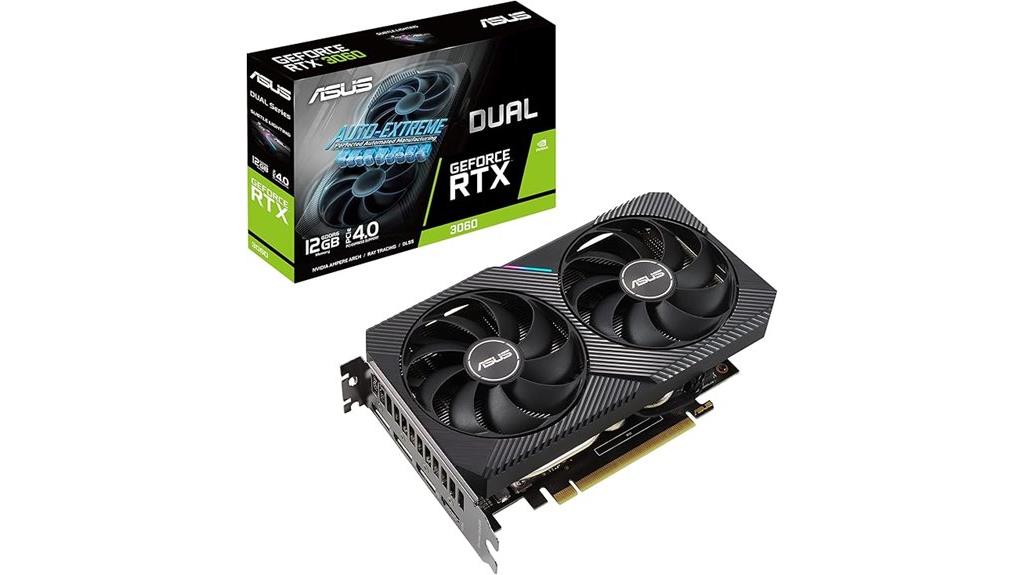

ASUS Dual NVIDIA GeForce RTX 3060 V2 OC Edition Gaming Graphics Card

The ASUS Dual NVIDIA GeForce RTX 3060 V2 OC Edition Gaming Graphics Card stands out as an excellent choice for entry-level gaming enthusiasts and CAD professionals seeking a balance between performance and affordability. Featuring 12GB GDDR6 memory and NVIDIA’s Ampere architecture, it delivers exceptional graphics performance, supporting resolutions up to 8K. With a boost clock of 1867 MHz in OC mode, the card excels in gaming and design tasks. Its efficient Axial-Tech fan design guarantees superior cooling and quiet operation, while a solid 4.7-star rating reflects user satisfaction. This graphics card is a strong contender for those prioritizing value without sacrificing quality.

Best For: Entry-level gaming enthusiasts and CAD professionals seeking a balance between performance and affordability.

Pros:

• Excellent performance for gaming across various genres with support for high graphics settings.
• Quiet operation and low temperatures, typically between 50-60°C under load.
• Solid build quality and aesthetic appeal, making it a great addition to any PC build.

Cons:

• May require minor adjustments for maximum settings in some demanding games.
• Limited to a minimum power supply requirement of 550W, which may necessitate upgrades for some users.
• Availability can be an issue due to high demand in the entry-level graphics card market.

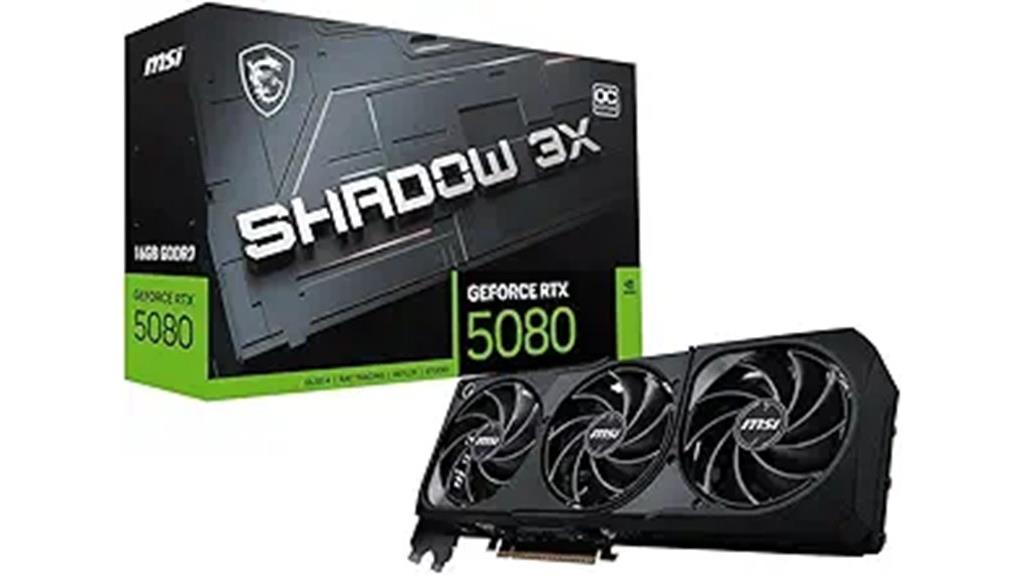

MSI GeForce RTX 5080 16GB Graphics Card

For professionals seeking a powerful solution for CAD applications in 2025, the MSI GeForce RTX 5080 16GB graphics card stands out with its robust 16GB GDDR7 memory and advanced cooling system. Featuring a triple fan design, it guarantees superior cooling efficiency, while the nickel-plated copper base plate enhances heat transfer. The card offers impressive performance, rivaling the RTX 4090, with significant overclocking potential reported by users. With dimensions of 11.93 x 4.76 inches and a weight of 2.29 pounds, it fits well in compact spaces. Additionally, it provides competitive pricing and a solid warranty, making it a compelling choice for CAD professionals.

Best For: Professionals and gamers seeking high-performance graphics solutions for demanding applications and gaming experiences.

Pros:

• Advanced Cooling: Triple fan design ensures superior cooling efficiency for prolonged performance.
• High Memory Capacity: 16GB GDDR7 memory allows for smooth handling of intensive tasks and games.
• Strong Overclocking Potential: Users report significant overclocking capabilities, enhancing performance beyond standard levels.

Cons:

• Size Limitations: Requires adequate space in the PC case due to its dimensions.
• Potential CPU Bottlenecks: Some users experience limitations in performance due to CPU constraints.
• Lack of RGB Lighting: Absence of RGB features may not appeal to users looking for aesthetic enhancements.

Factors to Consider When Choosing Graphics Cards (GPUs) for CAD

When you’re choosing a graphics card for CAD, several key factors will affect your decision. You’ll want to take into account memory size, cooling efficiency, and power supply requirements, along with how well the GPU performs in benchmarks. Don’t forget to check its compatibility with your software to guarantee smooth operation.

Memory Size Importance

Choosing the right memory size for your graphics card is essential, especially if you’re working with complex CAD models. Graphics cards with larger memory, like 8GB or 12GB of GDDR6, are vital for handling intricate designs and ensuring smooth rendering performance. High memory speeds and bandwidth, ideally 18 GHz or more, enhance data transfer efficiency, directly impacting your CAD applications. Adequate memory size also supports multitasking, allowing you to run multiple applications simultaneously without lag. For high-resolution projects and detailed designs, aiming for at least 10GB is advantageous, as CAD software often requires significant memory to store large textures and models. Insufficient memory can lead to performance bottlenecks, crashes, and slowdowns, hindering your workflow.

Cooling System Efficiency

Even with the right memory size, a graphics card’s performance can falter without an efficient cooling system. To maintain ideal temperatures during intensive CAD tasks, look for GPUs with dual or triple fan designs. These systems prevent thermal throttling and guarantee consistent performance. Ideally, you want temperatures to stay below 70 degrees Celsius under load, which prolongs your card’s lifespan. Advanced cooling solutions enhance airflow, using technologies like axial fans with barrier rings that improve cooling efficiency. Additionally, effective cooling can operate quietly during lighter tasks, creating a more pleasant working environment for long CAD sessions. Ultimately, consider both fan noise levels and thermal management capabilities when selecting your graphics card to guarantee stable performance in high-stress situations.

Power Supply Requirements

Power supply requirements are essential for ensuring your graphics card operates reliably during demanding CAD tasks. When choosing a graphics card, make sure your power supply unit (PSU) delivers enough wattage, typically between 550W and 1000W, depending on the card’s specifications. Pay attention to the card’s power consumption under load; high-end models often draw more power, so opt for a PSU with higher efficiency ratings to maintain stability. Check the compatibility of power connectors, as different graphics cards may need various 6-pin or 8-pin PCIe connectors. Also, consider the total system power draw, including the CPU, to prevent overloading your PSU. Finally, always select a PSU from a reputable manufacturer for reliability and longevity.

Performance Benchmarking

When it comes to performance benchmarking for graphics cards in CAD applications, understanding key metrics is essential for making an informed decision. You’ll want to assess frame rates, rendering times, and graphical fidelity to gauge a GPU’s efficiency under load. Key metrics include maximum screen resolution, memory speed, and memory size, all of which greatly impact performance with complex models and high-resolution textures. Comparing benchmark scores in specific CAD software reveals how different GPUs handle rendering and simulation tasks, usually measured in frames per second (FPS). Don’t overlook cooling solutions and thermal performance, as high workloads can lead to overheating. Finally, confirm your GPU’s power requirements align with your system to avoid bottlenecks that hinder performance.

Compatibility With Software

Choosing a graphics card that’s compatible with your CAD software is essential for maximizing performance and efficiency. First, verify the GPU meets the specific requirements of your software, including the necessary OpenGL or DirectX versions. Next, confirm that it has sufficient VRAM since CAD applications thrive on higher memory for processing complex 3D models and large datasets. Don’t overlook compatibility with your workstation’s motherboard, particularly regarding PCIe slot versions and size limitations. Additionally, check your power supply to make sure it can handle the GPU’s wattage demands. Finally, research any known issues between particular graphics cards and your CAD software to sidestep potential performance bottlenecks or rendering problems. Making the right choice will greatly enhance your design experience.

Frequently Asked Questions

What Is the Ideal VRAM Amount for CAD Applications?

When it comes to CAD applications, you’ll want a graphics card with at least 4GB of VRAM for smooth performance. If you’re working on complex models or using multiple applications simultaneously, consider 8GB or more. This extra VRAM helps you handle larger datasets and improves rendering times. Ultimately, the right amount of VRAM guarantees your designs come to life without lag, making your workflow more efficient and enjoyable.

Are Integrated Graphics Suitable for CAD Software?

Integrated graphics can handle basic CAD tasks, but they often struggle with more complex designs or large files. If you’re working on simple 2D drawings or small projects, you might get by with integrated graphics. However, for 3D modeling or demanding simulations, you’ll likely find performance lacking. To optimize your workflow and avoid frustration, investing in a dedicated GPU is usually a better choice for serious CAD applications.

How Do I Know if My System Is Compatible?

To know if your system’s compatible, check your hardware specifications against the software requirements. Look for the processor type, RAM, and storage size in your system settings. You should also verify your GPU’s capabilities, ensuring it meets or exceeds the software’s graphics demands. Don’t forget to update your drivers, as outdated ones can cause compatibility issues. Finally, consult the software’s official website for specific requirements and recommendations.

What Is the Difference Between Gaming and CAD Graphics Cards?

The difference between gaming and CAD graphics cards lies in their design focus. Gaming GPUs prioritize high frame rates and quick rendering for immersive experiences, while CAD GPUs are optimized for precision and stability in complex design tasks. CAD cards often support advanced features like error correction and have better drivers for professional software. If you’re working on design projects, a CAD card can provide the reliability and performance you need for accurate results.

How Often Should I Upgrade My Graphics Card for CAD?

You should consider upgrading your graphics card for CAD every 2 to 4 years, depending on your workload and software demands. If you notice slower performance, lag, or if your software requires more advanced features, it’s time to think about an upgrade. Staying current guarantees you can handle the latest updates and tools efficiently, allowing you to work smoothly and enhance your designs without frustrating delays. Regular assessments help keep your setup optimized.

Conclusion

When it comes to choosing the best graphics card for CAD in 2025, you’ve got plenty of options to power up your designs. From the impressive performance of the XFX Speedster SWFT210 to the reliability of the MSI GeForce RTX 4060, there’s a GPU to fit your needs. Remember to take into account factors like memory size, compatibility, and performance benchmarks to guarantee you make the right choice for your projects. Happy designing!
